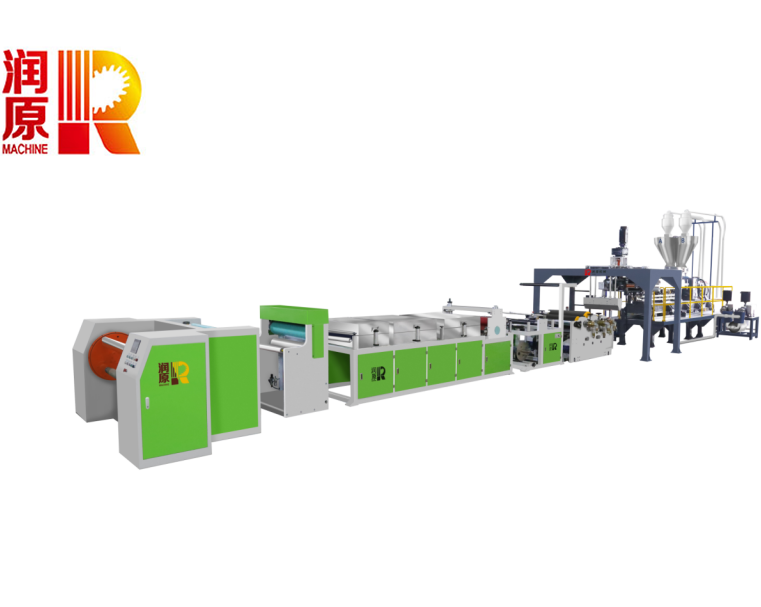

RS-75 PET 雙螺桿系列塑料片材擠出機

RS-75 PET Double Screw Series Plastic Sheet Extruder Machine


RS-75 PET雙螺桿系列塑料片材機組是我公司針對市場需求精心設計制造的,它主要適用于生產PET等塑料片材。

本機型采用積木式同向平行雙螺桿結構,配合高效耐用的真空泵系統,能快速有效的排出PET物料中的水氣,嚴格控制由水氣帶來的粘度降問題。此機型通過雙螺桿結構優化及采用特別定制的機筒,螺桿材料,配合螺桿負載保護裝置及金屬檢測分離器,達到安全,穩定,高產,方便等目的。

擠出機螺桿采用*長徑比,具有塑化效果好,膜片厚薄均勻,流速一致等優點。

鏡面壓光輥,輥筒表層溫度均勻,使生產的片材光潔明亮,厚薄均勻。

本套機組由擠出機、三輥壓延機、牽引收卷機組成。

RS-75 PET Double screw Series Plastic Sheet Extruding Machine is developed by the market demand. It is mainly applied to produce PET sheet.

This machine adopts the building block parallel twin screw structure, with efficient and durable vacuum pump system, can quickly and effectively discharge the water vapor in PET material, strictly control the viscosity drop caused by water vapor.

This machine achieves the purpose of safety, stability, high yield and convenience through the optimization of double-screw structure and the use of special customized barrel, screw material, coupled with the screw load protection device and metal detection separator.

The screw of the extruding machine uses big ratio of length and diameter. It has good forming effect, even sheet thickness and same running speed.

Bright surface of the pressing roller and even temperature of its surface to make sure that the sheet is clean and the thickness is equal.

This machine includes screw extruder, 3-roller calendar, traction rewinder.


技術參數

Technical Parameters:

型號ModelRS-75
適用材料Suitable MaterialPET
片材寬度Sheet Width≤780mm
片材厚度 Sheet Thickness0.10 - 1.5mm
螺桿直徑Screw Diameterφ71mm
螺桿長徑比Screw Length-Diameter RatioL/D=44
主機螺桿轉速Main screw revolving speed30~300r/min
雙螺桿扭矩等級Twin screw torque gradeT/A=9.2N.m/c㎡
螺桿外徑 / 內徑比Screw Outer/Inner Diameter RatioDO/Di=1.55
總功率Total Power245KW
主機加熱功率Main Machine Heating Power50KW
*產量Maximum Output 500kgs/h
機器尺寸Machine Dimension24*4*3(m)
三輥由獨立電機控制
Three rollers controlled by three motors separately.

-
