RYJ-SP Series Plastic Sheet Extruding Machine
RYJ-SP系列塑料片材擠出機
Structural characteristics: 結構特性
●RYJ-SP Series Plastic Sheet Extruding Machine is developed by the market demand. It is mainly applied to produce PP, PE, PS, HIPS sheet etc. RYJ-SP系列塑料片材擠出機是根據市場需求研制的，主要用于生產PP、PE、PS、HIPS等片材
●The screw of the extruding machine uses big ratio of length and diameter. It has good forming effect, even sheet thickness and same running speed. 擠出機的螺桿采用大長徑比，成形效果好，片材厚度均勻，運行速度一致
●This machine includes screw extruder, 3-roller calandar, traction rewinder. 本機包括螺桿擠出機、三輥壓延機、牽引復卷機
●Three rollers controlled by three motors separately. 三個輥筒分別由三個電機控制
●Bright surface of the pressing roller and even temperature of its surface to make sure that the sheet is clean and the thickness is equal.壓輥表面光亮，表面溫度均勻，確保壓片清潔，厚度均勻

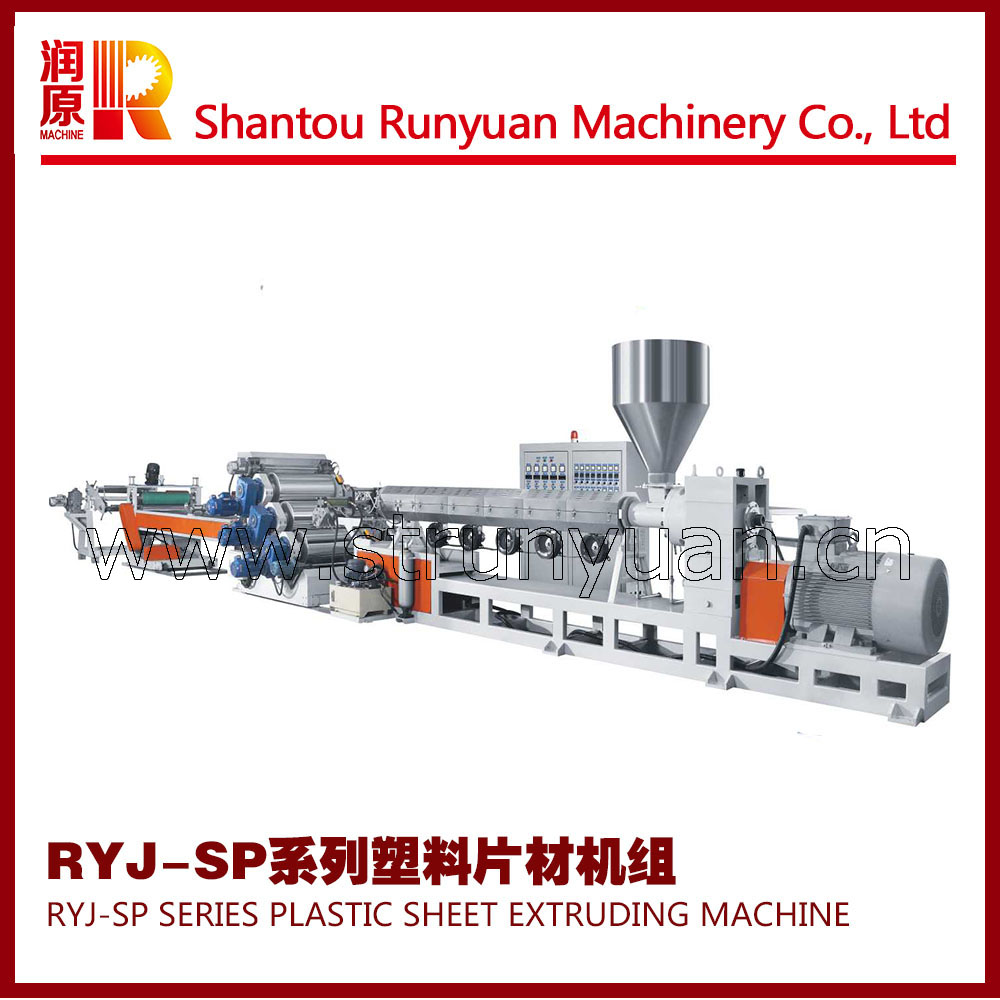

Machine Picture: 機器圖片
Parameter: 參數
MODEL 型號 | RYJ-SP-900-105 | RYJ-SP-900-110 | RYJ-SP-900-120 |
Roller Length 輥筒長度 | 420*900mm | 420*900mm | |
Sheet Width 片材寬度 | ≤750mm | ≤750mm | ≤750mm |
Sheet Thickness 片材厚度 | 0.3-2.0mm | 0.3-2.0mm | 0.3-2.0mm |
Screw Diameter 螺桿直徑 | 105mm | 110mm | 120mm |
Screw Length-Diameter Ratio 螺桿長度-直徑比 | 1:33 | 1:34 | 1:35 |
Total Power 總功率 | 110kw | 120kw | 145kw |
Heating Power 加熱功率 | 45kw | 60kw | 70kw |
Max. Output *輸出 | 220kg/h | 250kg/h | 350kg/h |
Dimension 尺寸 | 12.5×1.8×2 (m) | 13×1.8×2 (m) | |
Total Weight 總重量 | 8T | 9T | 10T |
Machine Produce Picture: 機器生產圖片

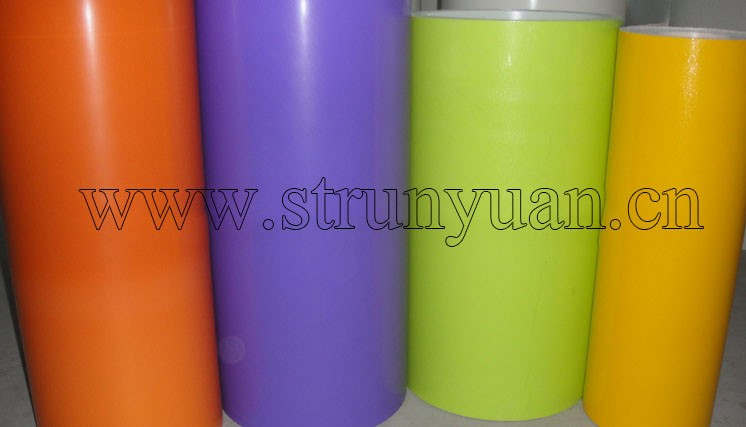

Sheet Samples Picture:片材樣品圖片

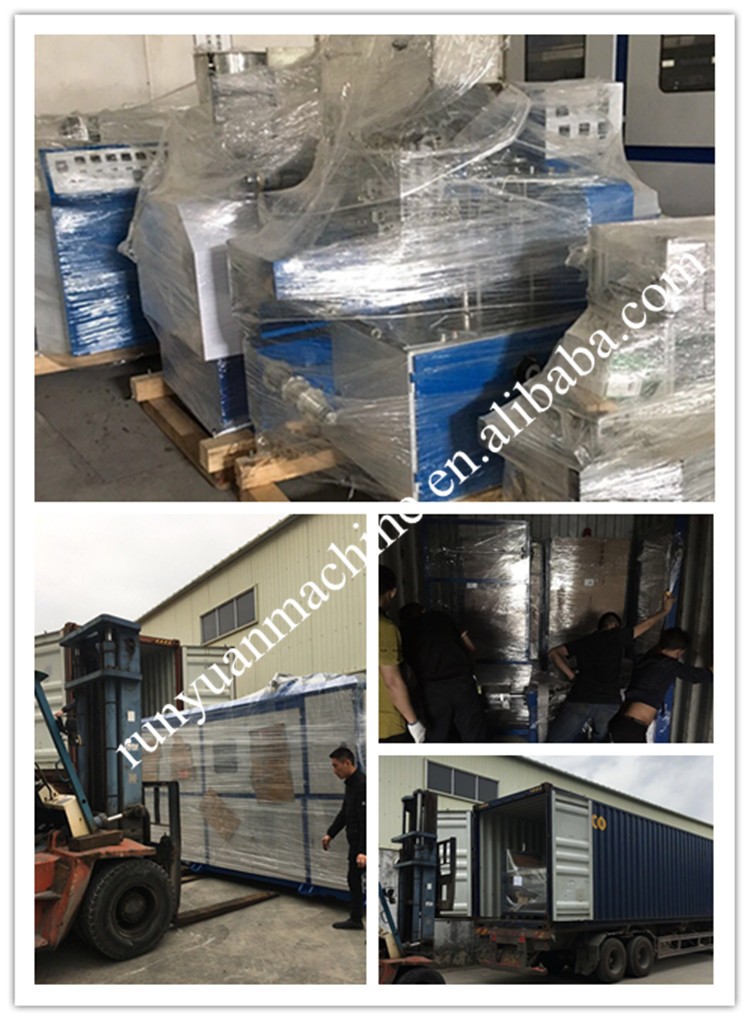

Loading & Delivery：裝貨出柜

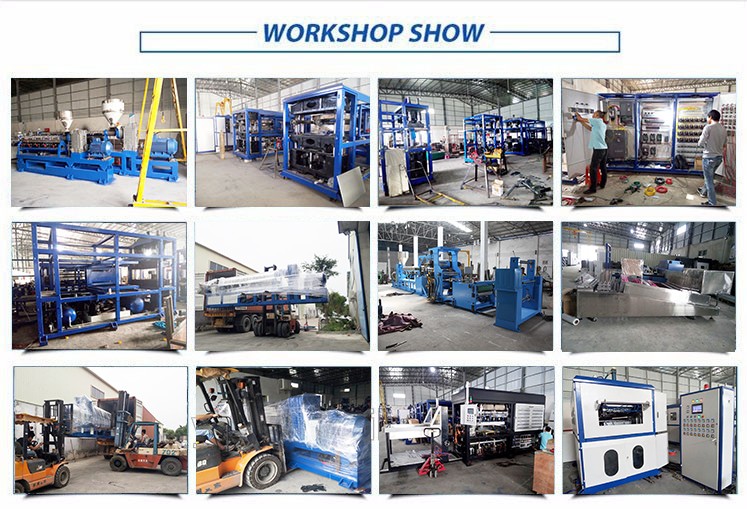

Factory Workshop: 工廠車間
