Automatic Multi-stage Hydraulic Thermoforming Machine
全自動液壓多工位熱成型機

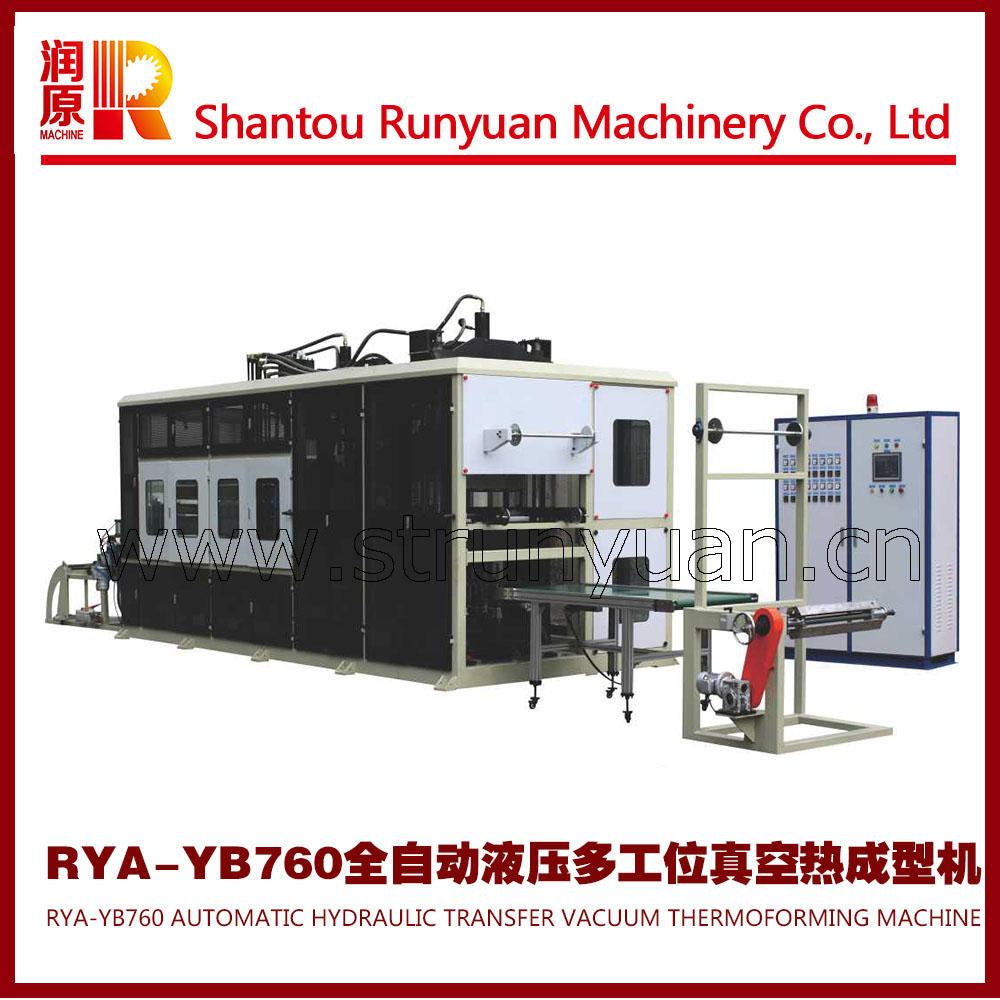

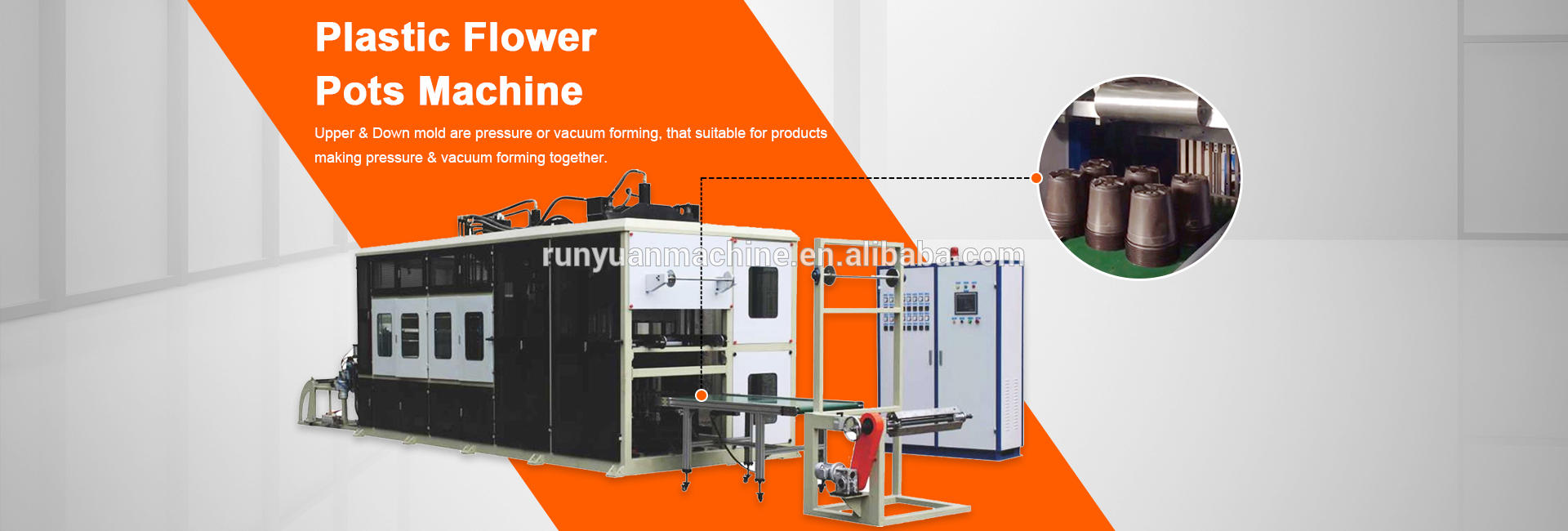

Machine Picture:機器圖片
Parameter:參數
型號 Model | RYA-YB760/600 | RYA-YB760/520 |
適用材料 Suitable Material | PS, PET, PP | PS, PET, PP |
主電機功率 Main Motor Power | 40KW | 30KW |
適用片材厚度 Sheet Thickness | 0.3-1.2mm | 0.3-1.2mm |
成型深度 Formed Depth | 120mm | 120mm |
工作效率 Cycle per minute | 20-30次/分鐘 20-30times/min | 20-30次/分鐘 20-30time/min |
*成型面積 Max Formed Area | 760×600mm | 760×520mm |
片材寬度 Sheet Width | 600-800mm | 600-800mm |
加熱功率 Heating Power | 145KW | 120KW |
整機重量 Total Weight | 23T | 15T |
Structural characteristics: 功能與特點
*Machine includes four working positions: forming, punching, cutting and stacking.
*本機分為成型，沖孔，沖剪，堆疊四個工位。
*Hydraulic system has been used to control the forming position, punching position and the cutting position.
*成型工位，沖孔工位，沖剪工位采用全液壓系統控制。
*Upper and down mould can be pressure or vacuum forming. So this machine can make by pressure forming or by vacuum forming; and can be pressure and vacuum forming together to make a good & precision product.
*上下模臺配備正負壓氣源，可適用產品正負壓成型。
*Machine controlled by PLC system.
*整機采用PLC集成控制。

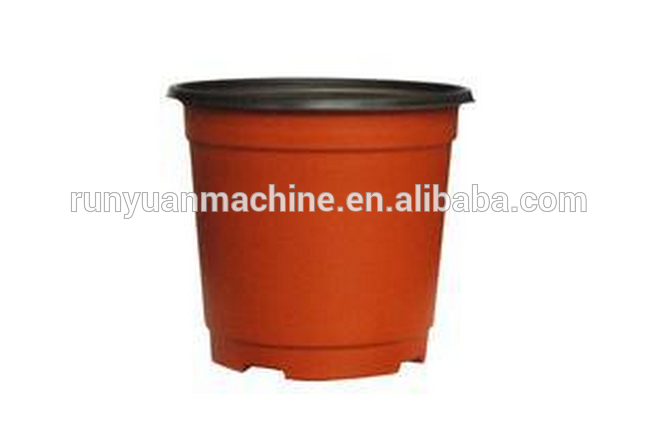

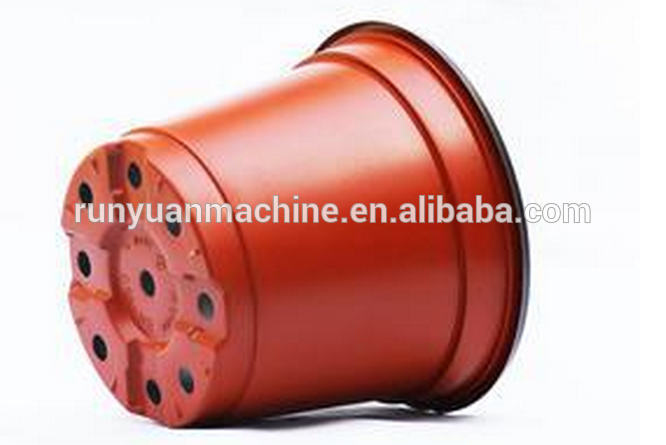

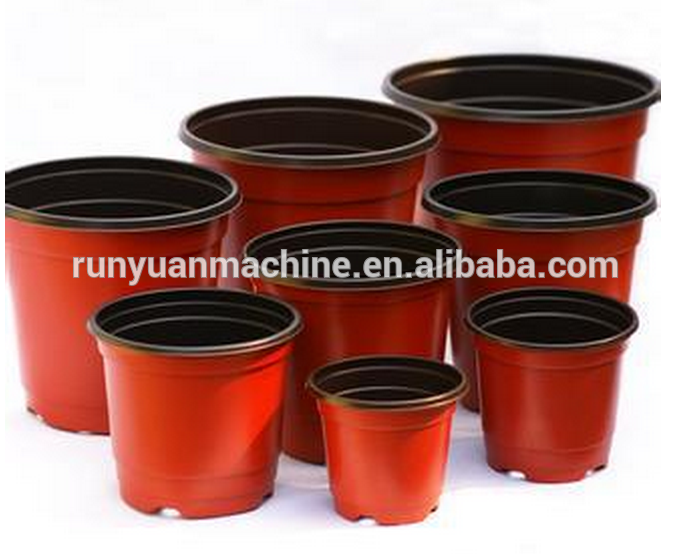

Flower Pot Samples Picture：塑料花盆樣品圖片
Loading & Delivery: 裝柜出貨
Shantou Runyuan Machinery Company: 汕頭潤原機械有限公司
