RYJ-FP110/130 PSP Frothing Sheet Extrusion Machine:
RYJ-FP110/130 發泡片材擠出機
Structural characteristics: 結構特性
RYJ-FP110/130 PSP Frothing Sheet Extrusion Machine unit is the equipment that applies the most popular double stage series of frothing sheet production. This equipment applies common-type polystyrene as material and immits high-pressure foaming agent. After extruding by the die, frothing, cooling, forming, and driving, it can rewind as PSP finished sheet products. This sheet material can be produced to different kinds of packaging containers after vacuum plastified forming; One-off Snack Box, Aquatic Tray, Supermarket Tray, Cake Tray, KT plate, Instant-Noodle Bowl, etc, which can be widely used in the packaging of food, fruit, advertisement brochures and industrial products. This machine features in advanced structure, stable performance, simple operation and high automation, etc.
RYJ-FP110/130型PSP發泡片材擠出機是應用*的雙級發泡片材系列生產的設備
本設備采用共型聚苯乙烯為原料，注入高壓發泡劑，經模具擠壓、起泡、冷卻、成型、驅動后，可作為PSPPSP成品卷取。本片材經真空塑化成型后可制成各種包裝容器; 一次性小吃盒、水產托盤、超市托盤、蛋糕托盤、KT盤、方便面碗等，可廣泛應用于食品、水果、宣傳冊和工業產品的包裝。該機具有結構先進、性能穩定、操作簡單、自動化程度高等特點

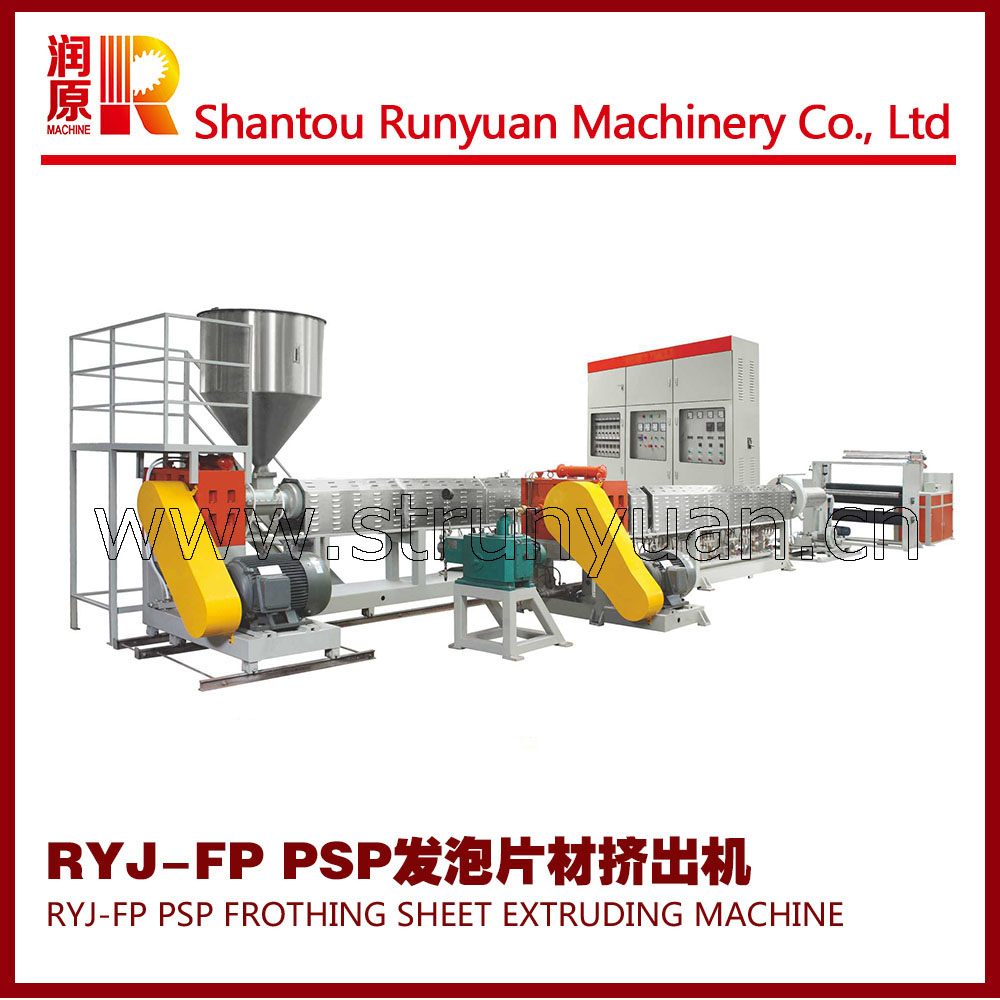

Machine Picture:機器圖片
Parameter: 參數
Model 型號 | RYJ-FP 110/130 PSP | RYJ-FP 130/150 PSP |
Rated Power 額定功率 | 230kw | 250kw |
Capacity 生產力 | 300kg/hour | 450kg/hour |
Screw Size 螺桿尺寸 | Φ110 Φ130 | Φ130 Φ150 |
Cooling Way 冷卻方法 | Wind Cooling; Water Cooling 風冷，水冷 | Wind Cooling; Water Cooling 風冷，水冷 |
Butane Pressure 丁烷壓力 | 1.5Mpa | 1.5Mpa |
Sheet Width 片材寬度 | 650-1200mm | 650-1200mm |
Sheet Thickness 片材厚度 | 1.5-4mm | 1.5-4mm |
Dimension(mm) 尺寸 | 5500×1750×1600 7000×1750×1600 | 5500×1750×1600 7000×1750×1600 |
Weight 重量 | 20T | 24T |

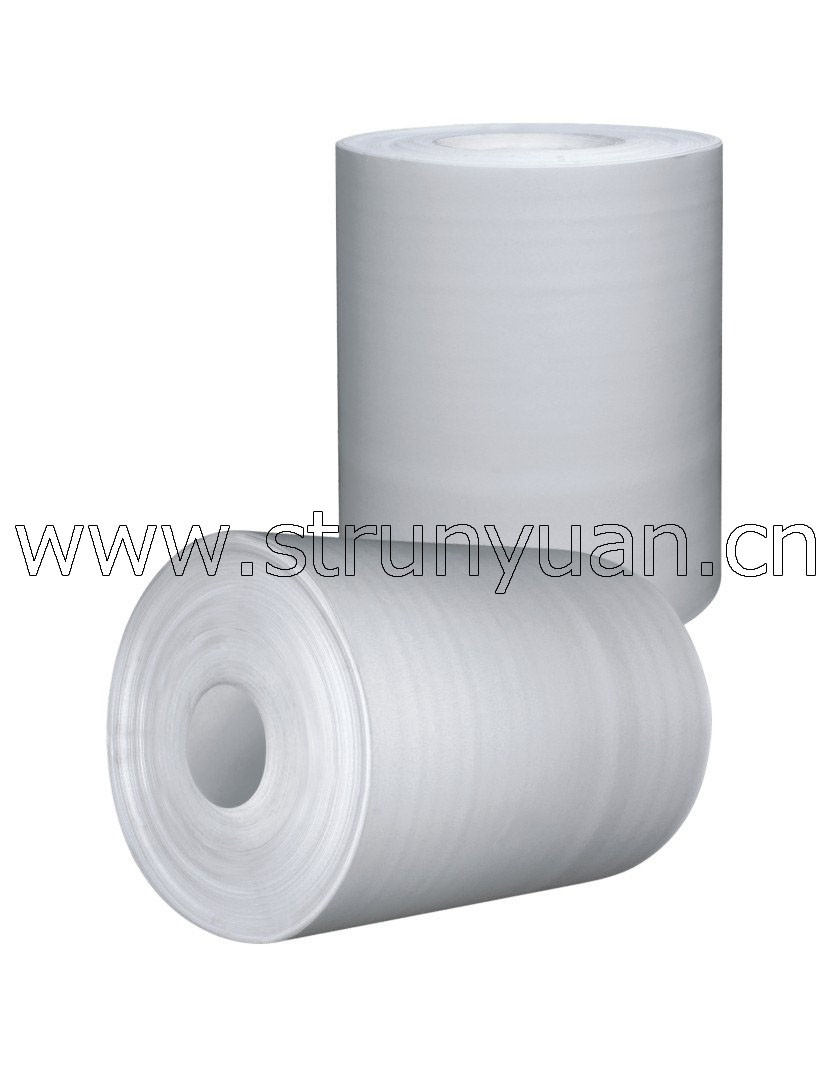

Products Sample: 樣品圖片

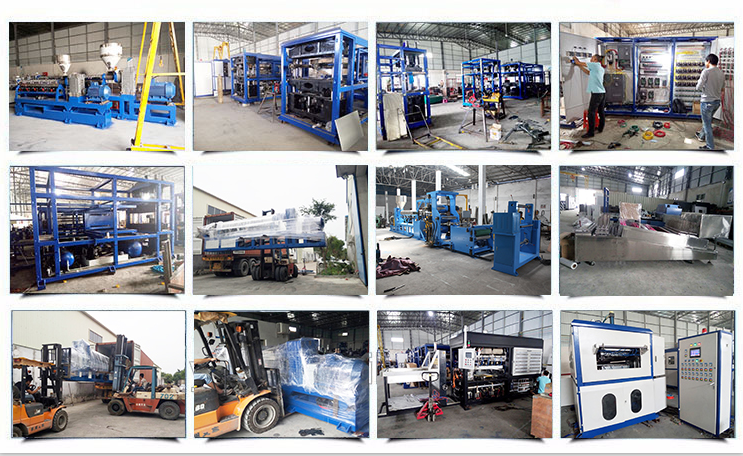

Workshop Show: 車間展示

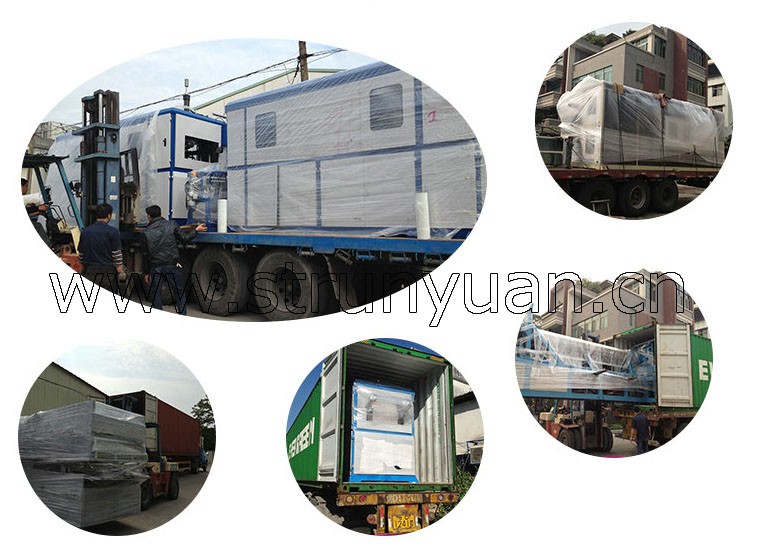

Loading Container Picture：裝柜圖片

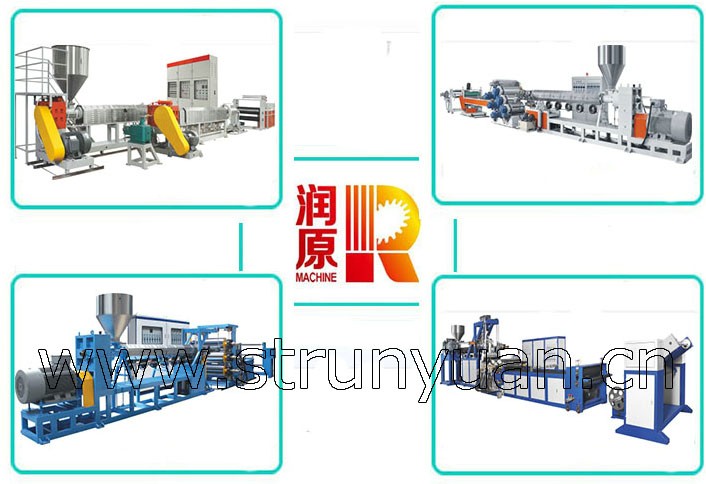

Sheet Extruder Machine Series: 片材擠出機系列
